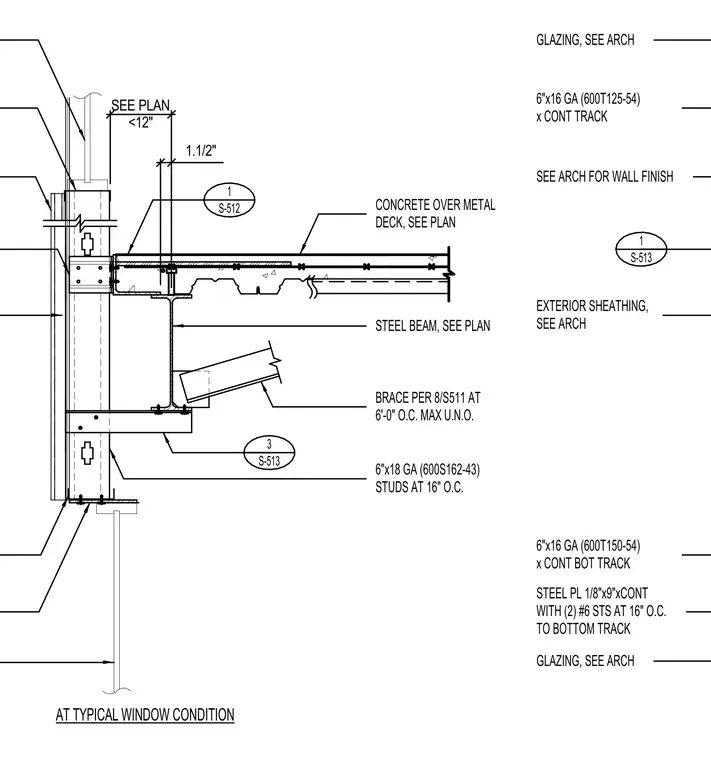

A concrete over metal deck floor system frames into a steel beam supporting an exterior wall condition. Cold-formed metal framing consists of 6-inch by 16-gauge continuous tracks and 6-inch by 18-gauge studs spaced at 16 inches on center. A continuous 1/8-inch by 9-inch steel plate connects to the bottom track with two #6 self-tapping screws at 16 inches on center. A structural steel brace frames into the steel beam at 6 feet on center maximum unless noted otherwise. Exterior sheathing and glazing are coordinated per architectural drawings.
CONCRETE OVER METAL DECK, SEE PLAN STUDS AT 16" O.C. 6"x18 GA (600S162-43) EXTERIOR SHEATHING, SEE ARCH GLAZING, SEE ARCH SEE ARCH FOR WALL FINISH GLAZING, SEE ARCH STEEL BEAM, SEE PLAN BRACE PER 8/S511 AT 6'-0" O.C. MAX U.N.O. AT TYPICAL WINDOW CONDITION 6"x16 GA (600T125-54) x CONT TRACK 6"x16 GA (600T150-54) x CONT BOT TRACK STEEL PL 1/8"x9"xCONT WITH (2) #6 STS AT 16" O.C. TO BOTTOM TRACK 1 S-512 3 S-513 1 S-513 1.1/2" SEE PLAN <12"
