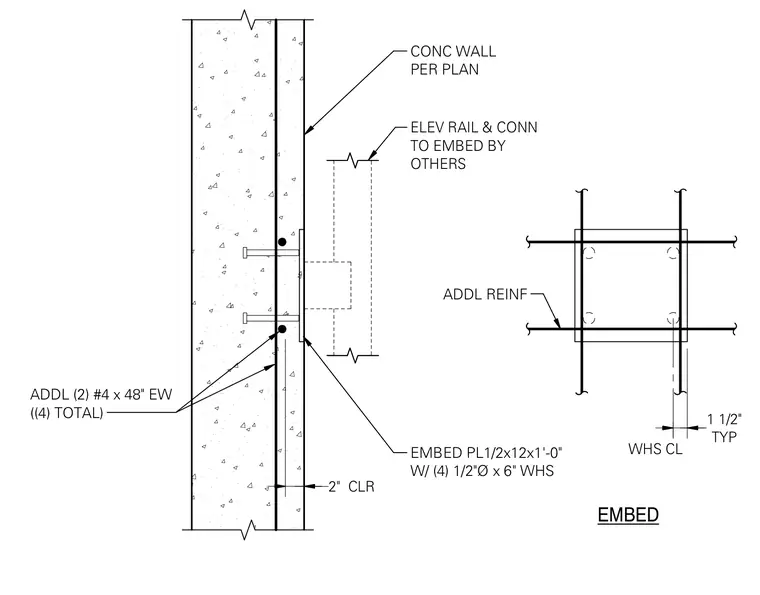

A steel embed plate measuring 1/2 inch by 12 inches by 1 foot 0 inches is cast flush into a concrete wall and anchored with four 1/2-inch diameter by 6-inch welded headed studs. Additional reinforcement consisting of two number 4 bars at 48 inches each way for a total of four bars is placed around the embedment with a 2-inch clearance. The elevator rail and connection to the embed plate are provided by others.
TYP 1 1/2" ADDL REINF CONC WALL PER PLAN EMBED PL1/2x12x1'-0" W/ (4) 1/2"Ø x 6" WHS ADDL (2) #4 x 48" EW ((4) TOTAL) 2" CLR ELEV RAIL & CONN TO EMBED BY OTHERS WHS CL EMBED
