A steel beam per plan connects to a column centerline with a 1/4-inch beam cap plate extended for a hanger. A 3/8-inch stiffener plate aligns with the centerline of the beam against the column web. Fillet welds sized at 1/4 inch are specified on three sides connecting the plate assembly. Dimensional limits include a maximum half-inch clearance and a maximum 2-inch dimension for the weld size match.

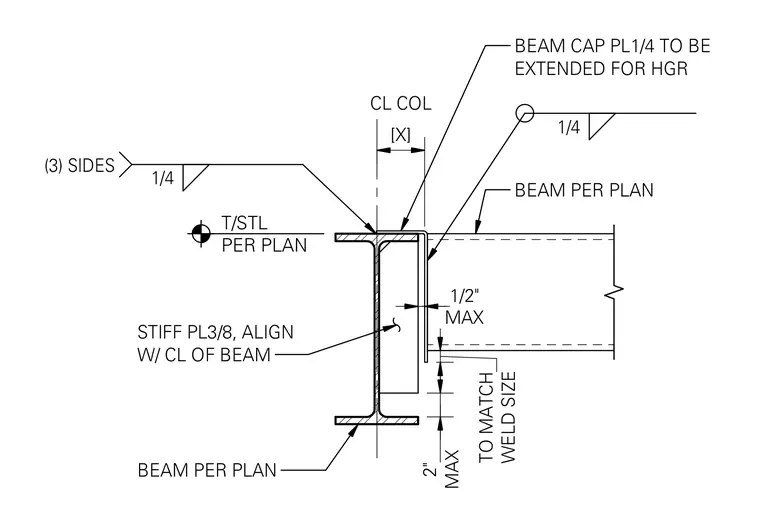

1/4 (3) SIDES BEAM PER PLAN STIFF PL3/8, ALIGN W/ CL OF BEAM BEAM CAP PL1/4 TO BE EXTENDED FOR HGR 1/4 BEAM PER PLAN CL COL T/STL PER PLAN MAX 2" MAX 1/2" [X] WELD SIZE TO MATCH
