Text on the drawing

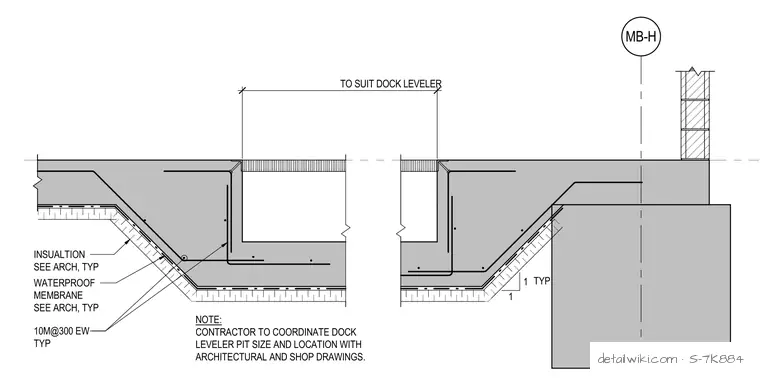

MB-H TO SUIT DOCK LEVELER NOTE: CONTRACTOR TO COORDINATE DOCK LEVELER PIT SIZE AND LOCATION WITH ARCHITECTURAL AND SHOP DRAWINGS. INSUALTION SEE ARCH, TYP WATERPROOF MEMBRANE SEE ARCH, TYP 10M@300 EW TYP 1 1 TYP
