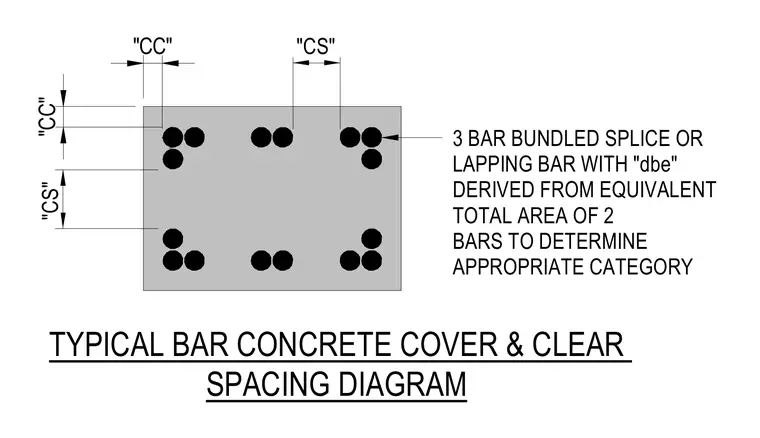

Typical concrete cover and clear spacing requirements apply to reinforcing steel in concrete members. Concrete cover dimensions CC and clear spacing dimensions CS surround multiple reinforcing bars. A three-bar bundled splice configuration requires an equivalent bar diameter derived from the total area of two bars to determine the appropriate category.
TYPICAL BAR CONCRETE COVER & CLEAR SPACING DIAGRAM "CS" "CS" 3 BAR BUNDLED SPLICE OR LAPPING BAR WITH "dbe" DERIVED FROM EQUIVALENT TOTAL AREA OF 2 BARS TO DETERMINE APPROPRIATE CATEGORY "CC" "CC"
