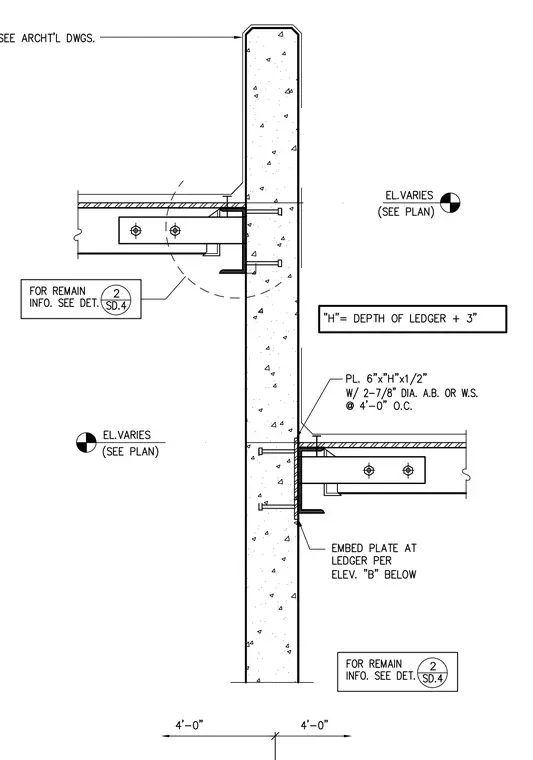

A precast concrete wall panel ties into intermediate steel floor framing using an embed plate and ledger angle connection. A 6-inch by H by 1/2-inch steel plate with two 7/8-inch diameter anchor bolts or welded studs spaced at 4 feet 0 inches on center secures the framing to the wall. The variable height H is defined as the depth of the ledger plus 3 inches. Additional embed plates at the ledger are specified per elevation views below.
