Structural · S-7JZMZ

Sign Tower Foundation

Materials

Elements

Columns Floors / Slabs Foundations / Footings Arches Entrances Site / Paving Anchors / Embeds Connections / Plates

About this detail

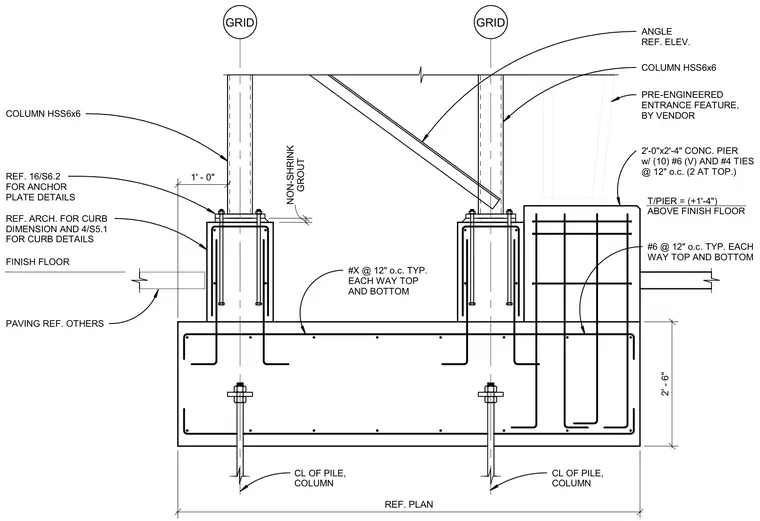

This structural foundation detail shows two hollow structural section six-by-six steel columns anchored to reinforced concrete piers sitting atop a concrete pile cap. The foundation incorporates a two-foot-six-inch deep concrete pad reinforced with number six bars at twelve inches on center each way top and bottom, supported by piles centered beneath each column. Each concrete pier measures two feet by two feet four inches and is reinforced with ten vertical number six bars and number four ties at twelve inches on center, with two ties at the top. Non-shrink grout is placed beneath the column base plates, which connect via anchor plates detailed on sheet sixteen of S6.2. An angle brace extends between the columns to support a vendor-provided pre-engineered entrance feature. The top of the pier is set at one foot four inches above the finish floor elevation, with adjacent paving and curbs referenced to architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
