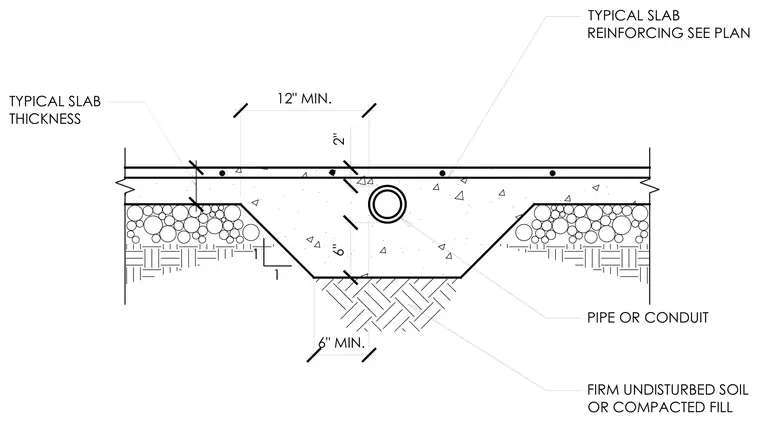

A pipe or conduit is embedded within a thickened concrete slab section bearing on firm undisturbed soil or compacted fill. The slab features typical reinforcing sized per plan and maintains a typical thickness outside the trench zone. The local trench depression measures a minimum of six inches deep with specified horizontal clearances of twelve inches minimum from the pipe centerline to the slope break. A two-inch concrete cover is maintained above the pipe or conduit.
TYPICAL SLAB REINFORCING SEE PLAN TYPICAL SLAB THICKNESS FIRM UNDISTURBED SOIL OR COMPACTED FILL PIPE OR CONDUIT 1 1 6" MIN. 12" MIN. 6" 2" s A A 7. O A A A <1 A —— A 7A0s •l A KK W%2 — I Bl | —' 1 1 l —l 1 "
