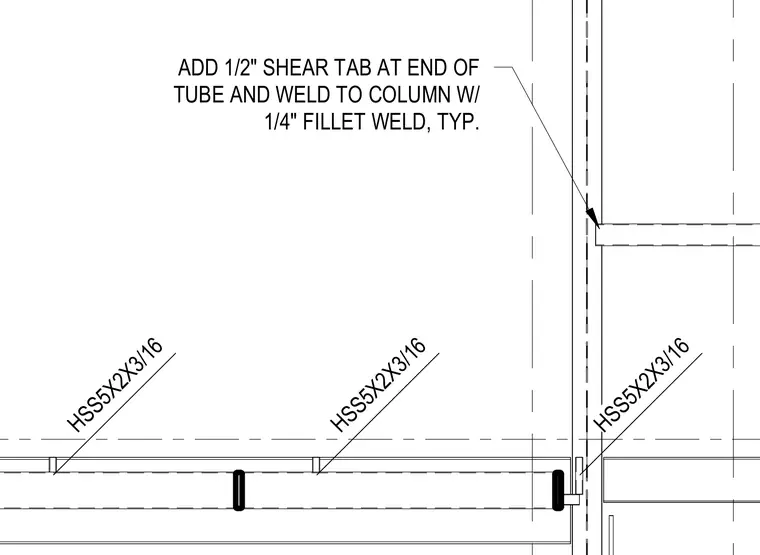

An HSS5x2x3/16 hollow structural section tube connects to a vertical structural column using a one-half-inch steel shear tab welded to the end of the tube. The shear tab is secured to the column using a one-quarter-inch fillet weld typically applied at each connection.
HSS5X2X3/16 HSS5X2X3/16 HSS5X2X3/16 ADD 1/2" SHEAR TAB AT END OF TUBE AND WELD TO COLUMN W/ 1/4" FILLET WELD, TYP.
