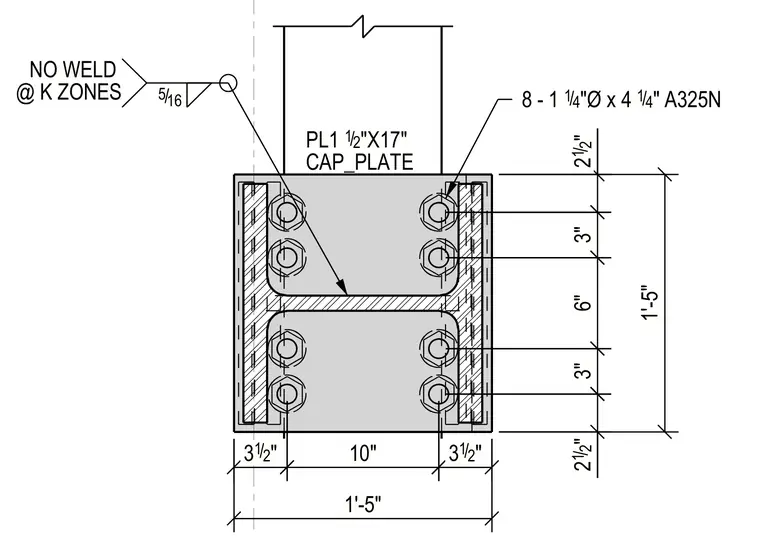

A steel column connects to a one-half-inch by seventeen-inch cap plate using eight one-and-one-quarter-inch diameter A325N bolts arranged in pairs along the flanges. A five-sixteenth-inch fillet weld attaches the plate while maintaining no weld at the K zones.
8 - 1 1 4 / "Ø x 4 1 4 / " A325N 516 / NO WELD @ K ZONES 3" 10" PL1 1 2 / "X17" CAP_PLATE 3 1 2 / " 2 12 / " 2 12 / " 3" 3 1 2 / " 6" 1'-5" 1'-5"
