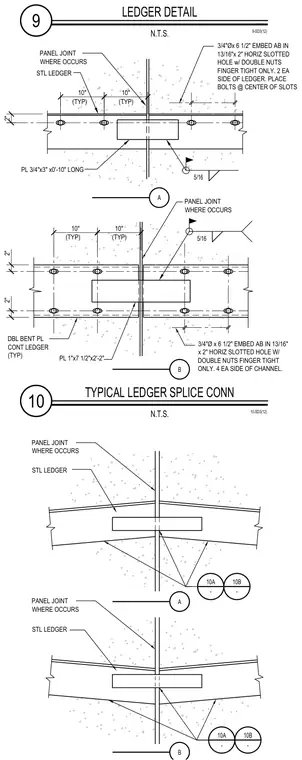

A structural steel ledger splice connection crosses a concrete panel joint. A continuous steel ledger ties back with three-quarter-inch diameter by six-and-a-half-inch embed anchor bolts placed in thirteen-sixteenths by two-inch horizontal slotted holes with double nuts tightened finger-only. Two anchor bolts are provided on each side of the ledger in the upper detail, and four anchor bolts are provided on each side of the channel in the lower detail. A three-quarter-inch by three-inch by ten-inch plate bridges the panel joint in the ledger detail, while a one-inch by seven-and-a-half-inch by two-foot-two-inch plate with double bent plates forms the splice in the lower configuration. Five-sixteenth-inch fillet welds secure the connection components as indicated.
10 TYPICAL LEDGER SPLICE CONN N.T.S. 10-SD3(12) 9 LEDGER DETAIL N.T.S. 9-SD3(12) 10" 10" 10" PANEL JOINT WHERE OCCURS PANEL JOINT WHERE OCCURS STL LEDGER 2" PL 1"x7 1/2"x2'-2" DBL BENT PL CONT LEDGER (TYP) 2" PL 3/4"x3" x0'-10" LONG (TYP) 2" (TYP) PANEL JOINT WHERE OCCURS (TYP) 10" (TYP) A B 10B - 10A - 5/16 5/16 STL LEDGER PANEL JOINT WHERE OCCURS 3/4"Øx 6 1/2" EMBED AB IN 13/16"x 2" HORIZ SLOTTED HOLE w/ DOUBLE NUTS FINGER TIGHT ONLY. 2 EA SIDE OF LEDGER. PLACE BOLTS @ CENTER OF SLOTS 3/4"Ø x 6 1/2" EMBED AB IN 13/16" x 2" HORIZ SLOTTED HOLE W/ DOUBLE NUTS FINGER TIGHT ONLY. 4 EA SIDE OF CHANNEL. STL LEDGER B A 10B - 10A -
