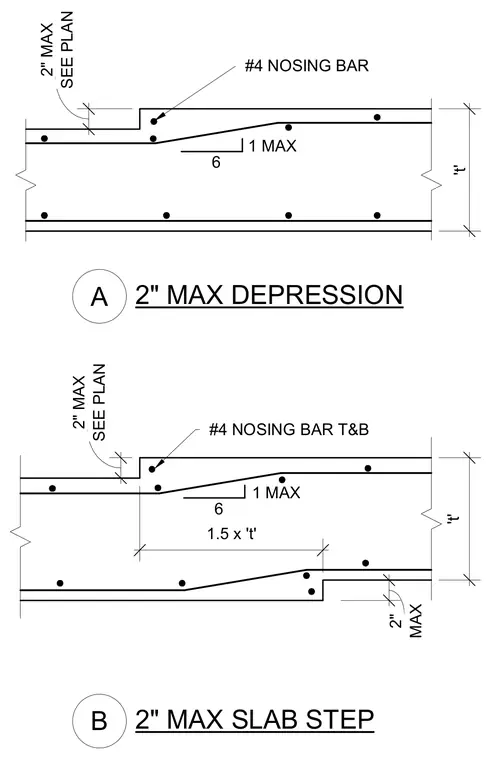

Concrete slab transitions feature a maximum two-inch depression or step. Number four nosing reinforcement bars are placed at the top and bottom of the step. A transition slope of one in six is maintained between different slab elevations. Slab thickness is indicated by 't' with a transition length of one and a half times 't'.
B 2" MAX SLAB STEP A 2" MAX DEPRESSION MAX 2" 1 MAX 6 SEE PLAN 2" MAX #4 NOSING BAR 't' 't' 1.5 x 't' SEE PLAN 2" MAX #4 NOSING BAR T&B 1 MAX 6
