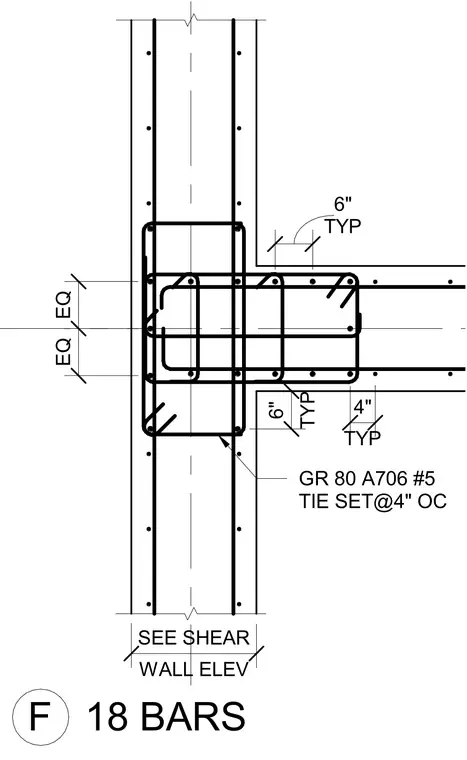

A reinforced concrete wall intersection includes grade 80 A706 number 5 ties set at 4 inches on center. Vertical reinforcement bars extend through the assembly with typical spacing dimensions of 6 inches and 4 inches.
WALL ELEV SEE SHEAR GR 80 A706 #5 TIE SET@4" OC EQ EQ F 18 BARS TYP 6" TYP 6" TYP 4"
