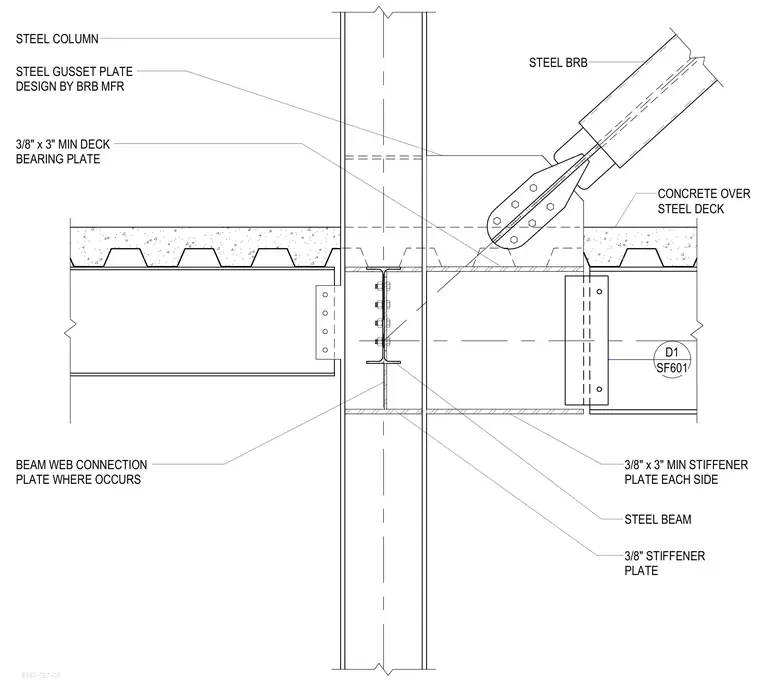

A steel buckling-restrained brace connects to a steel gusset plate designed by the brace manufacturer, which frames into a structural steel column and steel beam assembly. A concrete slab on metal deck passes through the connection zone, supported by three-eighths by three-inch minimum deck bearing plates. Three-eighths-inch stiffener plates are welded to the beam web and flanges on each side where required, alongside a beam web connection plate. The steel column receives the gusset plate and beam framing members to complete the lateral force-resisting frame intersection.
STEEL COLUMN STEEL BEAM BRBF-DET-09 CONCRETE OVER STEEL DECK STEEL BRB STEEL GUSSET PLATE DESIGN BY BRB MFR 3/8" x 3" MIN DECK BEARING PLATE 3/8" x 3" MIN STIFFENER PLATE EACH SIDE BEAM WEB CONNECTION PLATE WHERE OCCURS 3/8" STIFFENER PLATE SF601 D1
