Structural · S-7HRMA

Metal Stud Wall Deflection Joint at Steel Beam and Roof Deck

Materials

Elements

About this detail

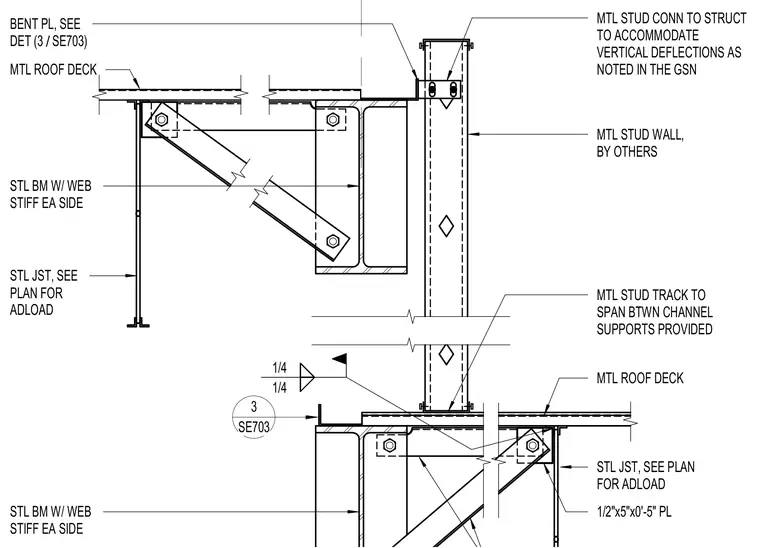

A metal stud wall terminates below a structural steel beam with web stiffeners on each side, utilizing a slotted metal stud connection to accommodate vertical deflections as specified in the general structural notes. A bent plate connects back to detail 3 on sheet SE703, while the metal roof deck bears across the top. Below, a steel joist frames into the assembly with a half-inch by five-inch by zero-foot-five-inch plate, welded with quarter-inch fillet welds. The metal stud track spans between provided channel supports above the lower roof deck.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
