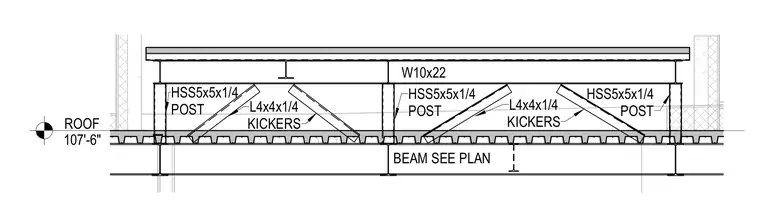

An elevated W10x22 roof beam is supported by HSS5x5x1/4 hollow structural section posts extending from the roof deck level at 107'-6". L4x4x1/4 angle kickers provide lateral bracing between the structural posts and the floor framing below. The lower beam is sized per plan and integrated with metal floor decking.
ROOF 107'-6" W10x22 BEAM SEE PLAN L4x4x1/4 KICKERS L4x4x1/4 KICKERS HSS5x5x1/4 POST HSS5x5x1/4 POST HSS5x5x1/4 POST
