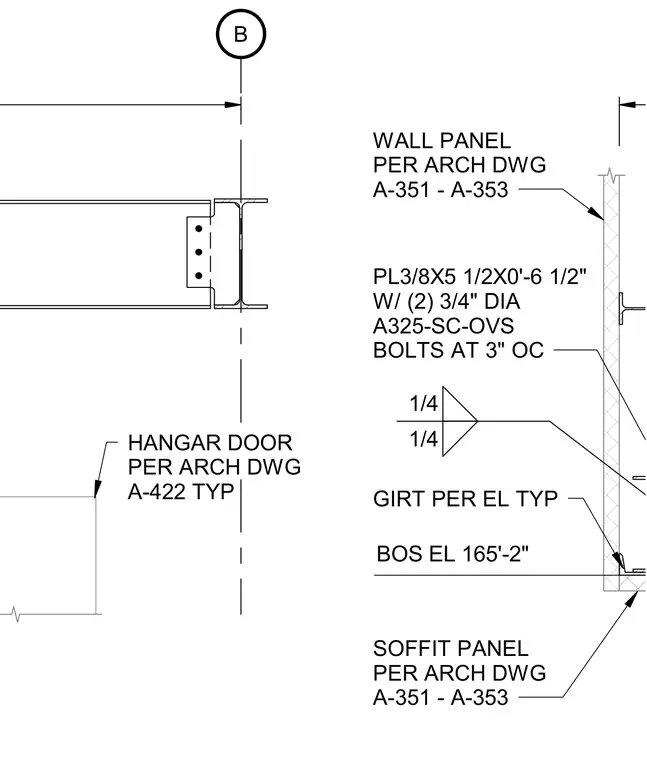

A structural girt connects to the building framing with a 3/8-inch by 5-1/2-inch by 6-1/2-inch plate secured by two 3/4-inch diameter A325-SC-OVS bolts spaced at 3 inches on center. A fillet weld size of 1/4 inch is specified at the connection interface. Wall panels, soffit panels, and the hangar door are coordinated per architectural drawings.
GIRT PER EL TYP BOS EL 165'-2" 1/4 1/4 PL3/8X5 1/2X0'-6 1/2" W/ (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC WALL PANEL PER ARCH DWG A-351 - A-353 SOFFIT PANEL PER ARCH DWG A-351 - A-353 B HANGAR DOOR PER ARCH DWG A-422 TYP
