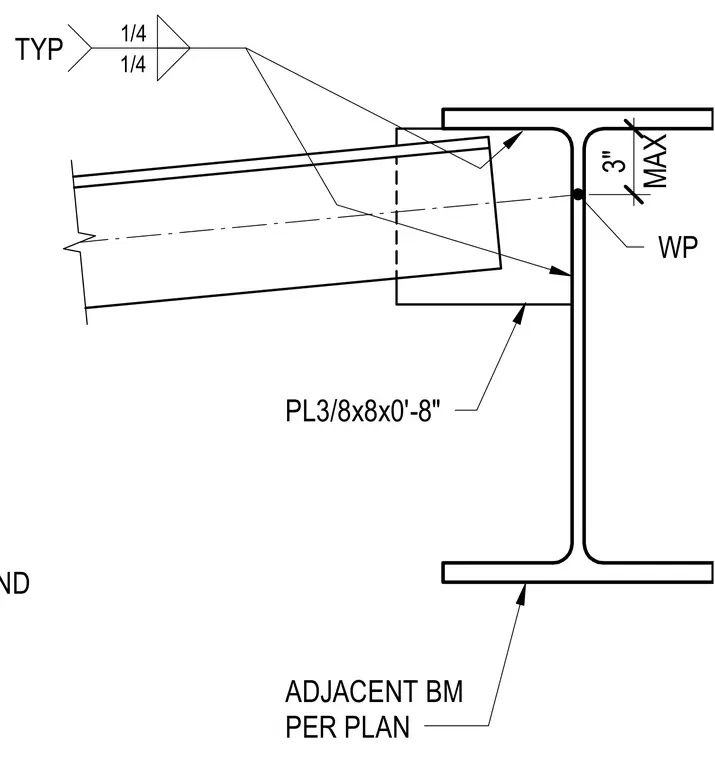

An inclined adjacent steel beam frames into the web of a supporting wide-flange steel column. The connection utilizes a 3/8-inch by 8-inch by 8-foot-0-inch steel plate welded with typical 1/4-inch fillet welds. The work point is located with a maximum 3-inch dimension from the top flange of the supporting member.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
