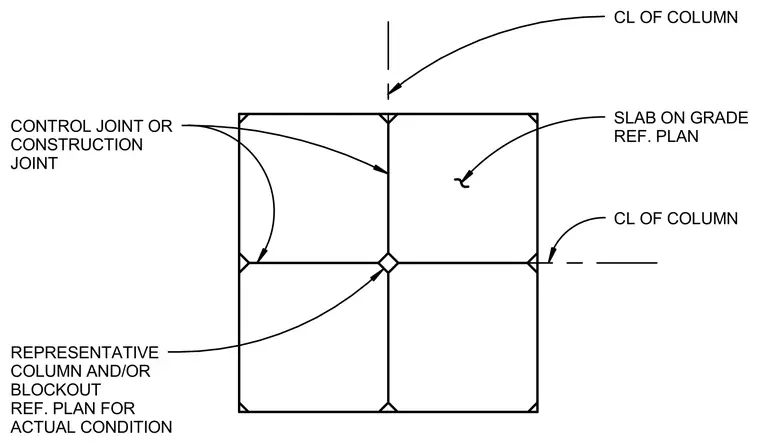

This reference plan details the layout for a slab on grade with control joints or construction joints intersecting at column centerlines. A representative column and/or blockout reference plan is provided to indicate actual conditions on site.
REPRESENTATIVE COLUMN AND/OR BLOCKOUT REF. PLAN FOR ACTUAL CONDITION SLAB ON GRADE REF. PLAN CONTROL JOINT OR CONSTRUCTION JOINT CL OF COLUMN CL OF COLUMN
