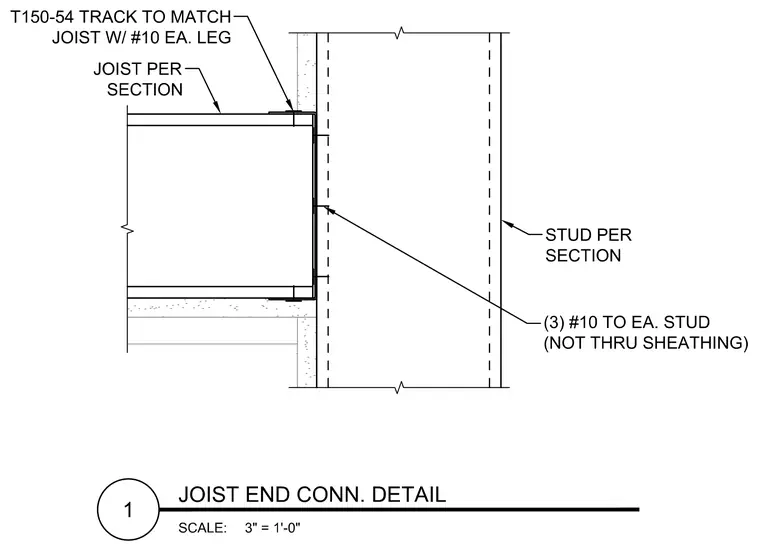

A cold-formed steel joist frames into a stud wall per section, bearing against the vertical stud web. A T150-54 track matches the joist and fastens with number ten screws to each leg. Three number ten screws fasten the web to each stud without penetrating through the exterior sheathing.
