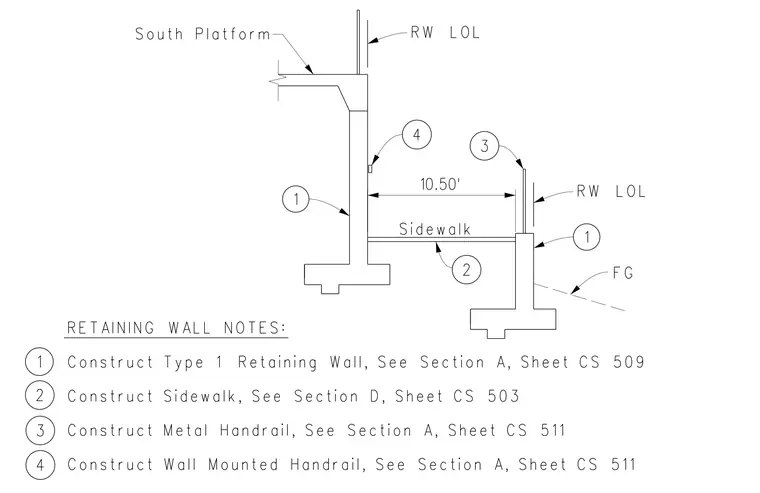

2 3 4 1 10.50’ Sidewalk 2 RW LOL 3 4 1 FG 1 RW LOL South Platform Construct Wall Mounted Handrail, See Section A, Sheet CS 511 Construct Metal Handrail, See Section A, Sheet CS 511 Construct Sidewalk, See Section D, Sheet CS 503 Construct Type 1 Retaining Wall, See Section A, Sheet CS 509 RETAINING WALL NOTES:
