Miscellaneous Floor Opening Framing and Deck Detail

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Arches Roof / Floor Openings

About this detail

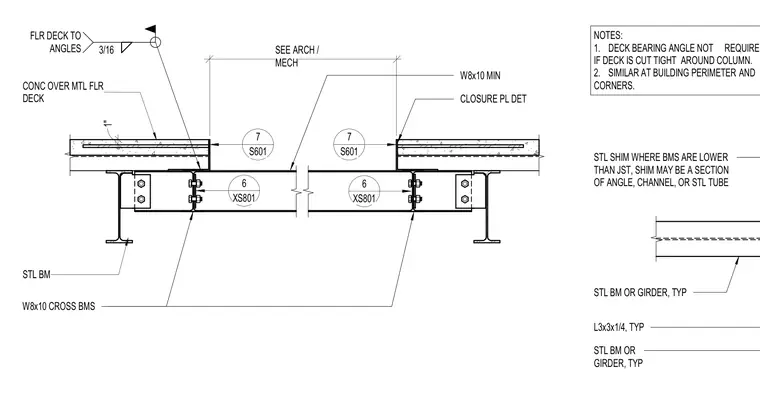

A concrete slab over a metal floor deck frames an interior floor opening bounded by structural steel beams and cross beams. W8x10 minimum cross beams connect to the primary steel beams using bolted framing connections. A three-sixteenth-inch fillet weld secures the floor deck to the supporting angles. A steel shim is included where beams are lower than the joists, utilizing a section of angle, channel, or steel tube. A typical L3x3x1/4 angle provides edge support where required. Deck bearing angles are omitted if the deck is cut tight around the column, with similar framing applied at building perimeters and corners.
