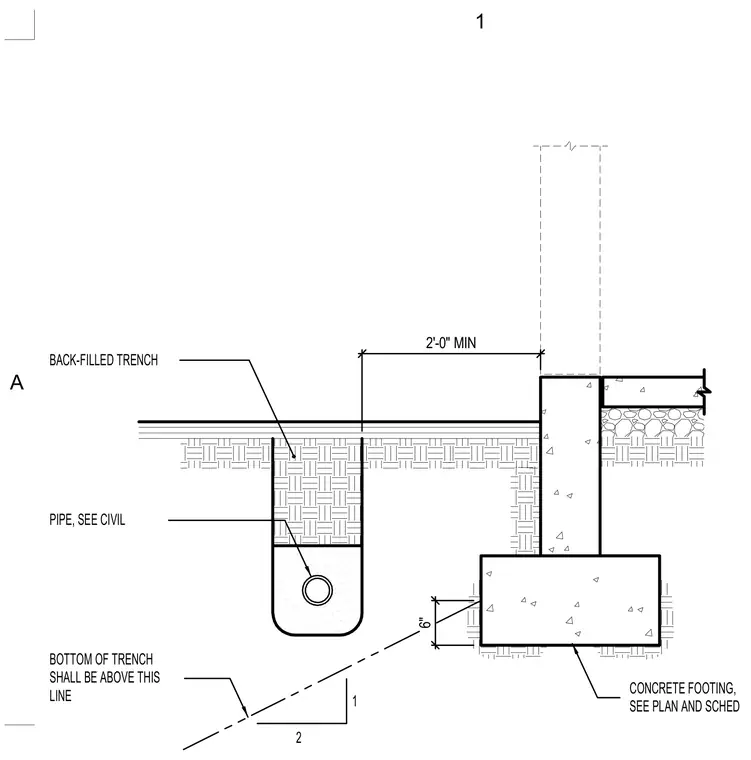

A utility pipe sits within a backfilled trench running parallel to a concrete footing, maintaining a minimum two-foot horizontal clearance from the foundation edge. The bottom of the utility trench must remain above a line projected upward at a two-to-one slope from the bottom edge of the concrete footing. The concrete footing size and reinforcement are sized per structural plan and schedule.
BACK-FILLED TRENCH PIPE, SEE CIVIL BOTTOM OF TRENCH SHALL BE ABOVE THIS LINE CONCRETE FOOTING, SEE PLAN AND SCHED 1 2 2'-0" MIN 6" A 1
