Structural · S-7G9JQ

Pre-Engineered Roof Anchor Connection to Structural Steel

Materials

Steel Metal (misc.)

Elements

Roofs Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection

About this detail

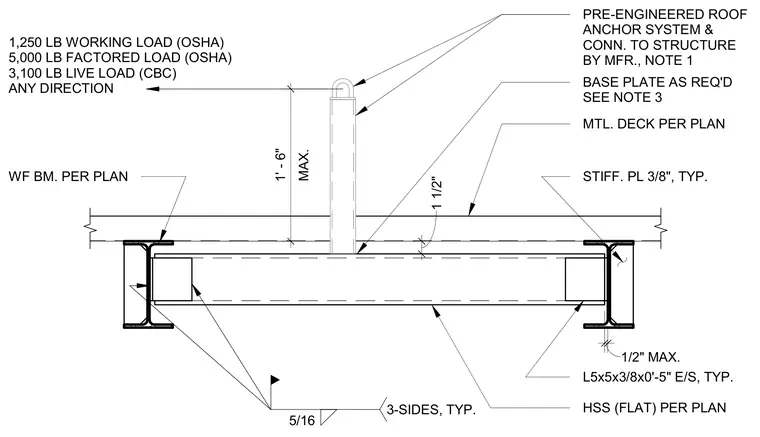

A pre-engineered roof anchor system is mounted to a hollow structural section supported by wide-flange beams and metal decking sized per plan. The assembly features an anchor post with a base plate welded to the structural framing using five-sixteenth-inch fillet welds on three sides, supplemented by L5x5x3/8 by zero foot five-inch angles at each end. Three-eighth-inch stiffener plates are provided at the beam supports. The structural connection is designed for a one thousand two hundred fifty pound working load and five thousand pound factored load under OSHA guidelines, alongside a three thousand one hundred pound live load under CBC requirements in any direction with a maximum height of one foot six inches.
