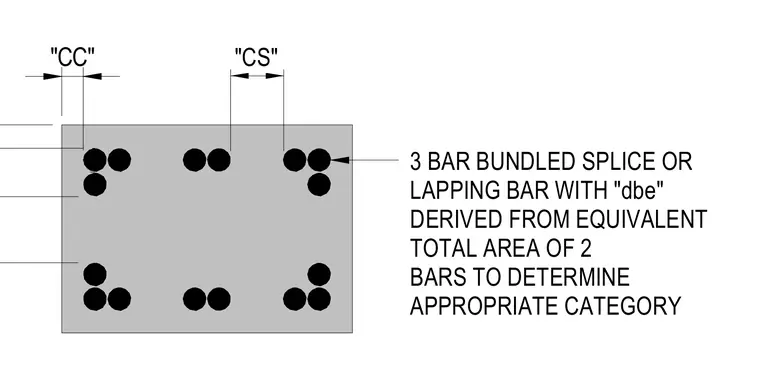

Concrete cover and bundled bar configuration illustrating clear spacing and lap splice parameters. A three-bar bundled splice utilizes an equivalent bar diameter derived from the total area of two bars to determine the appropriate development category. The concrete cover dimension CC and bar spacing CS are maintained across the reinforced concrete section.
"CS" 3 BAR BUNDLED SPLICE OR LAPPING BAR WITH "dbe" DERIVED FROM EQUIVALENT TOTAL AREA OF 2 BARS TO DETERMINE APPROPRIATE CATEGORY "CC"
