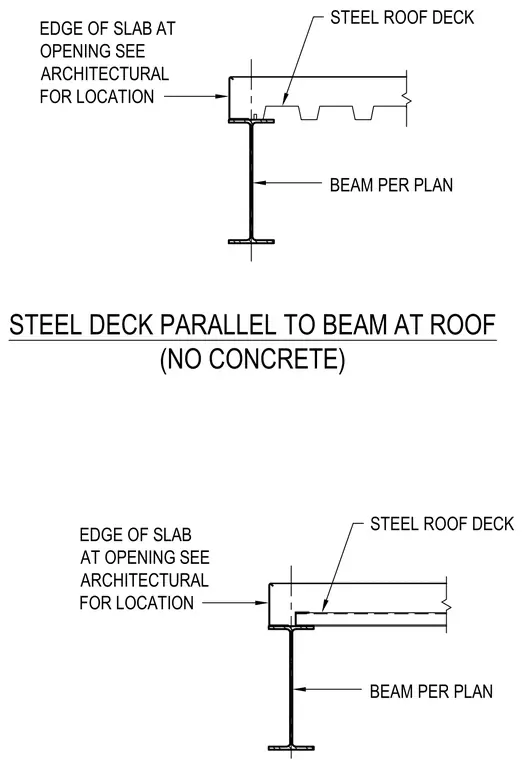

A structural steel roof deck bears on a structural steel beam per plan at the edge of a slab opening. The edge of the slab at the opening is located per architectural drawings. The steel roof deck runs parallel to the supporting beam without concrete fill.
EDGE OF SLAB AT OPENING SEE ARCHITECTURAL FOR LOCATION BEAM PER PLAN EDGE OF SLAB AT OPENING SEE ARCHITECTURAL FOR LOCATION STEEL ROOF DECK BEAM PER PLAN STEEL ROOF DECK STEEL DECK PARALLEL TO BEAM AT ROOF (NO CONCRETE)
