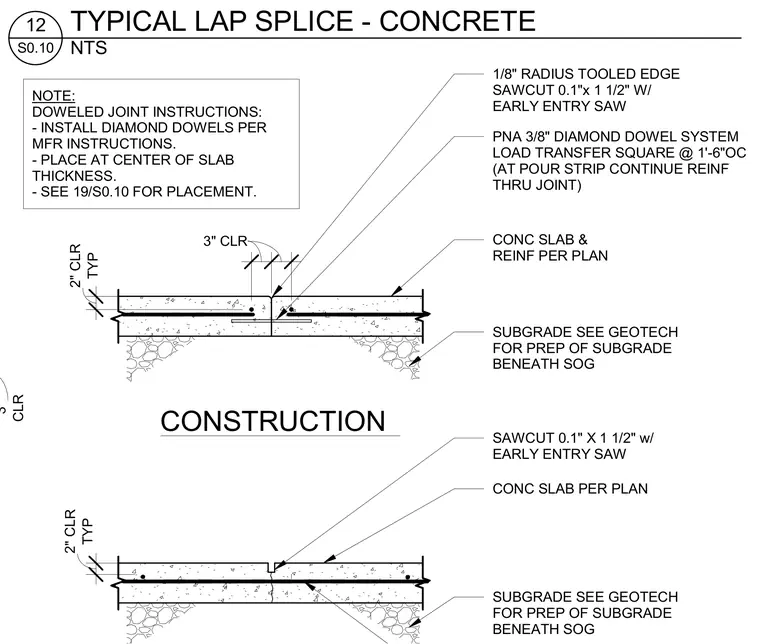

Concrete slab-on-grade construction joints feature diamond dowel load transfer squares spaced at eighteen inches on center. The joint incorporates an early-entry sawcut measuring zero-point-one inches by one and a half inches with a one-eighth-inch radius tooled edge. A PNA three-eighths-inch diamond dowel system is positioned at the center of the slab thickness. The concrete slab and reinforcement are placed over a prepared subgrade constructed per geotechnical recommendations, maintaining typical clear cover dimensions.
CLR 3" NOTE: DOWELED JOINT INSTRUCTIONS: - INSTALL DIAMOND DOWELS PER MFR INSTRUCTIONS. - PLACE AT CENTER OF SLAB THICKNESS. - SEE 19/S0.10 FOR PLACEMENT. TYP 2" CLR 3" CLR 3" CLR TYP 2" CLR 1/8" RADIUS TOOLED EDGE SAWCUT 0.1"x 1 1/2" W/ EARLY ENTRY SAW PNA 3/8" DIAMOND DOWEL SYSTEM LOAD TRANSFER SQUARE @ 1'-6"OC (AT POUR STRIP CONTINUE REINF THRU JOINT) CONC SLAB & REINF PER PLAN SUBGRADE SEE GEOTECH FOR PREP OF SUBGRADE BENEATH SOG SAWCUT 0.1" X 1 1/2" w/ EARLY ENTRY SAW CONC SLAB PER PLAN SUBGRADE SEE GEOTECH FOR PREP OF SUBGRADE BENEATH SOG CONSTRUCTION NTS S0.10 12 TYPICAL LAP SPLICE - CONCRETE
