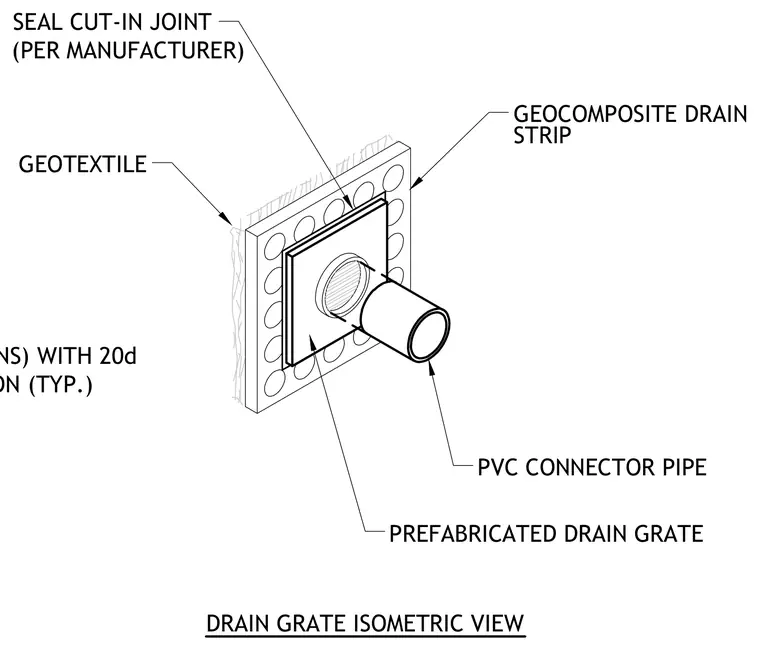

A prefabricated drain grate connects to a PVC connector pipe, mounted against a geocomposite drain strip and geotextile. A seal cut-in joint is installed per manufacturer specifications. The assembly ties into timber lagging secured with twenty-penny nails.
TIMBER LAGGING (SEE ELEVATIONS) WITH 20d NAILS FOR LAGGING INSTALLATION (TYP.) GEOTEXTILE PVC CONNECTOR PIPE GEOCOMPOSITE DRAIN PREFABRICATED DRAIN GRATE STRIP DRAIN GRATE ISOMETRIC VIEW SEAL CUT-IN JOINT (PER MANUFACTURER)
