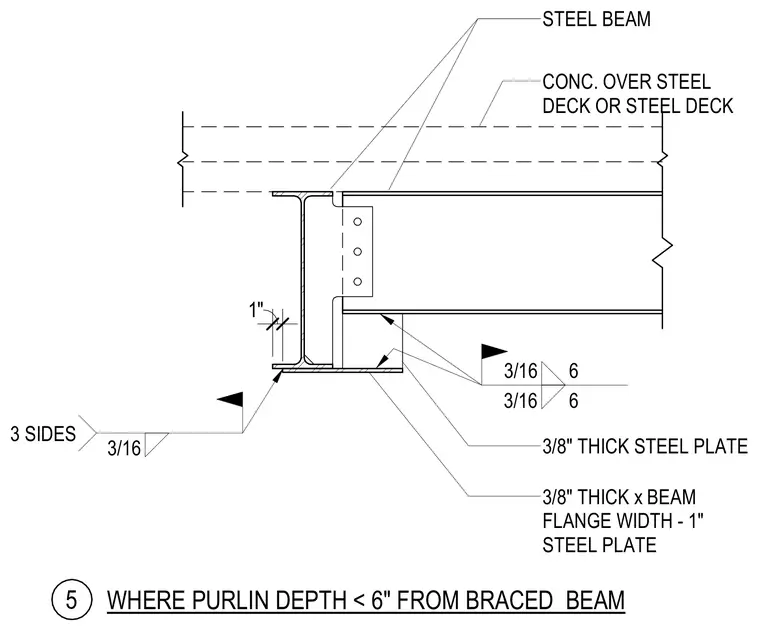

A structural steel framing connection where a purlin connects to a braced steel beam with a depth of less than six inches. The connection utilizes a three-eighths-inch thick steel plate welded with three-sixteenth-inch fillet welds on three sides, along with a three-eighths-inch thick steel plate sized to the beam flange width minus one inch. The assembly interfaces below a concrete over steel deck or steel deck floor system supported by the steel beam.
WHERE PURLIN DEPTH < 6" FROM BRACED BEAM STEEL BEAM CONC. OVER STEEL DECK OR STEEL DECK 3/8" THICK STEEL PLATE 3/16 6 3/16 6 3/16 3 SIDES 5 1" 3/8" THICK x BEAM FLANGE WIDTH - 1" STEEL PLATE
