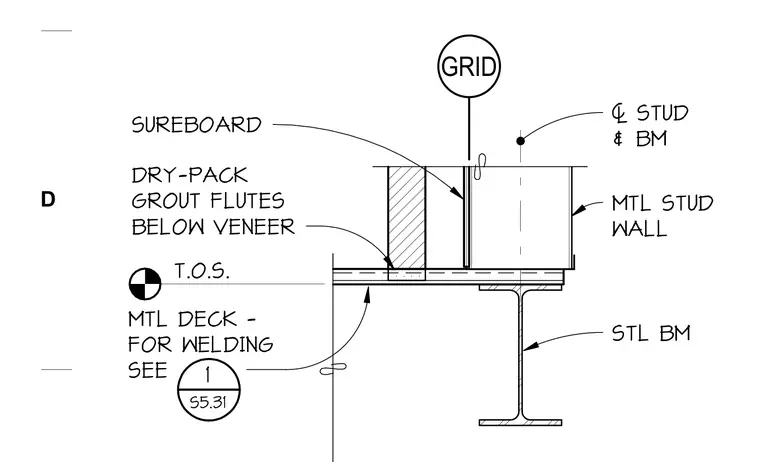

A structural steel beam supports a metal deck carrying a metal stud wall with a veneer finish. Dry-pack grout fills the metal deck flutes below the veneer line. The top of steel elevation aligns with the grid line and stud centerline.
T.O.S. GRID ! STUD & BM SUREBOARD MTL STUD WALL STL BM DRY-PACK GROUT FLUTES BELOW VENEER MTL DECK - FOR WELDING SEE . 1 S5.31 D
