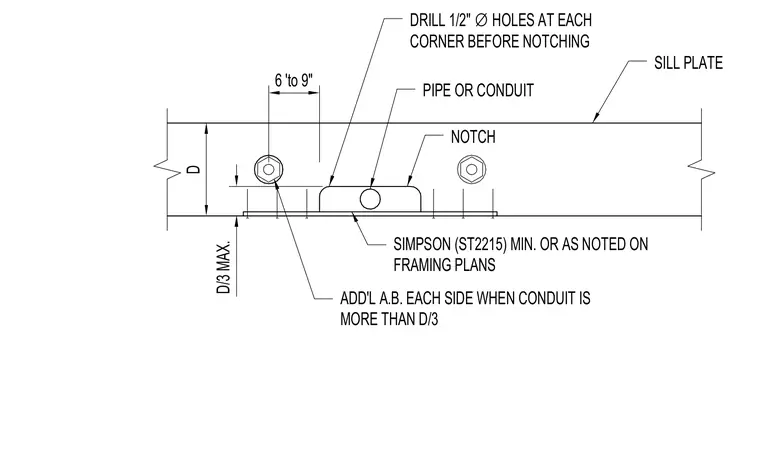

A wood sill plate with a depth D is detailed for pipe or conduit penetrations and notches. One-half-inch diameter holes are drilled at each corner prior to notching. Notches are restricted to a maximum depth of D/3, with additional anchor bolts installed on each side when the conduit size exceeds D/3. A Simpson ST2215 connector strap or approved alternate is specified as noted on the framing plans, positioned six to nine inches from the anchor bolts.
D 6 'to 9" D/3 MAX. ADD'L A.B. EACH SIDE WHEN CONDUIT IS MORE THAN D/3 SIMPSON (ST2215) MIN. OR AS NOTED ON FRAMING PLANS PIPE OR CONDUIT NOTCH SILL PLATE DRILL 1/2" ∅ HOLES AT EACH CORNER BEFORE NOTCHING
