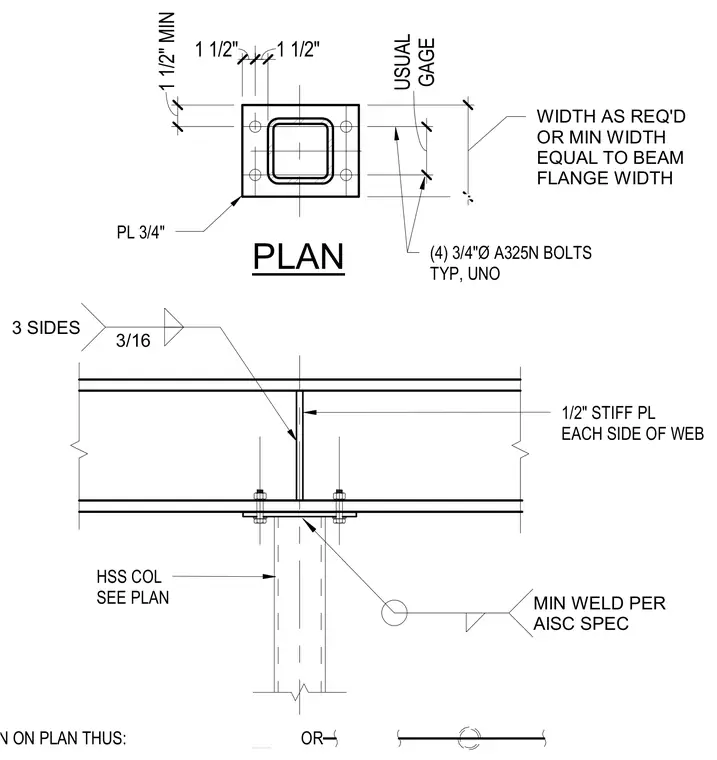

A continuous wide-flange beam bears on a three-quarter-inch steel plate atop an HSS column, connected by four three-quarter-inch-diameter A325N bolts typically unless otherwise noted. The cap plate width matches the beam flange or is sized per plan with typical one-and-a-half-inch edge distances and gages. One-half-inch stiffener plates are welded to each side of the beam web with three-sixteenth-inch fillet welds on three sides. Minimum welds per AISC specification secure the assembly.
SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB 3/16 3 SIDES MIN WELD PER AISC SPEC PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2"
