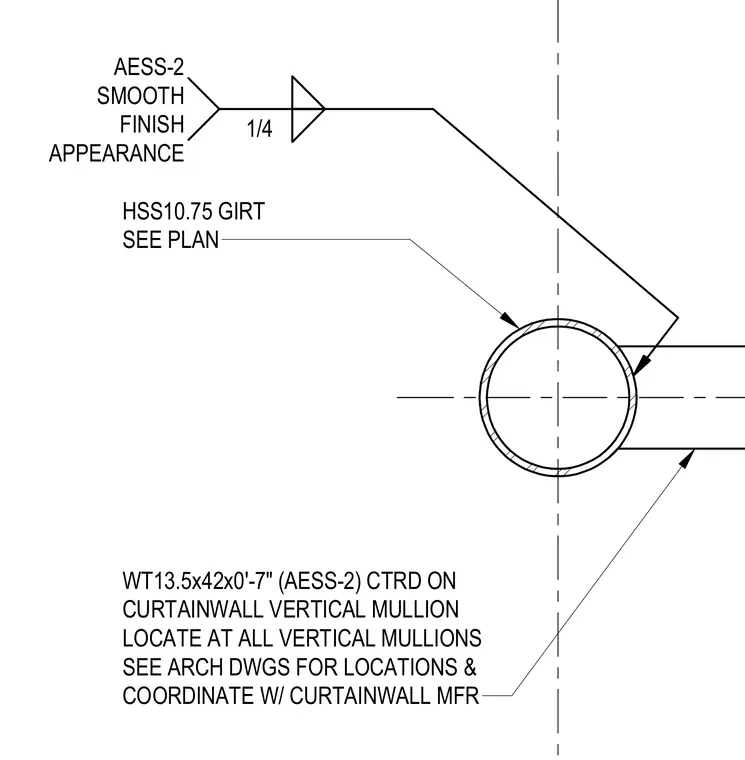

A WT13.5x42x0'-7" structural tee is centered on a curtainwall vertical mullion and welded to an HSS10.75 structural steel girt with a quarter-inch fillet weld, finished to AESS-2 smooth appearance standards. The girt is sized per plan and located at all vertical mullions with positions coordinated against the architectural drawings and curtainwall manufacturer. The assembly requires an AESS-2 smooth finish appearance.
HSS10.75 GIRT SEE PLAN 1/4 AESS-2 SMOOTH FINISH APPEARANCE WT13.5x42x0'-7" (AESS-2) CTRD ON CURTAINWALL VERTICAL MULLION LOCATE AT ALL VERTICAL MULLIONS SEE ARCH DWGS FOR LOCATIONS & COORDINATE W/ CURTAINWALL MFR
