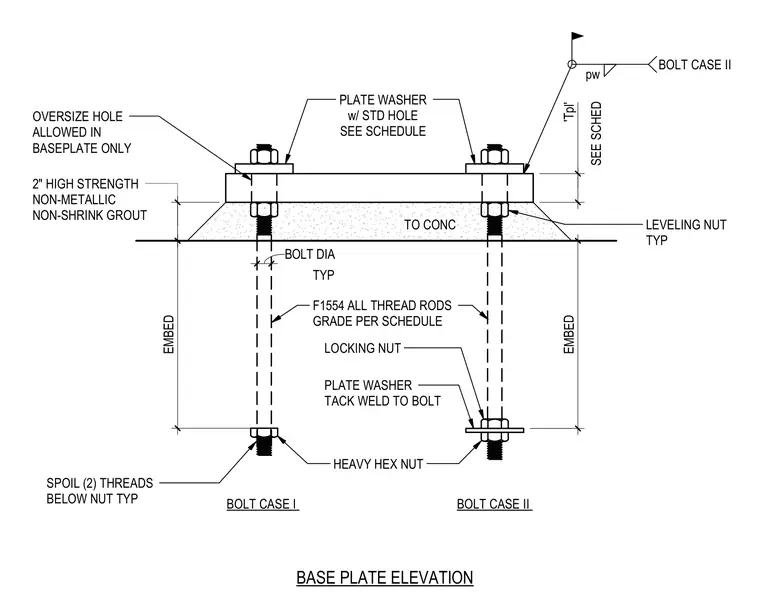

A structural steel base plate anchors to concrete using ASTM F1554 all-thread rods in two alternative anchorage configurations. Bolt Case I utilizes a standard embedded heavy hex nut with two threads spoiling below the nut. Bolt Case II incorporates a plate washer with a tack-welded locking nut and heavy hex nut for enhanced embedment anchorage. A two-inch thick layer of high-strength non-metallic non-shrink grout is detailed beneath the base plate with leveling nuts typically positioned above the grout. Plate washers with standard holes sit atop the base plate under heavy hex nuts, with oversized holes permitted solely in the base plate.
LEVELING NUT TYP LOCKING NUT BOLT CASE I BOLT CASE II PLATE WASHER TACK WELD TO BOLT HEAVY HEX NUT SPOIL (2) THREADS BELOW NUT TYP PLATE WASHER w/ STD HOLE SEE SCHEDULE TO CONC 'Tpl' pw BOLT CASE II 2" HIGH STRENGTH NON-METALLIC NON-SHRINK GROUT SEE SCHED OVERSIZE HOLE ALLOWED IN BASEPLATE ONLY BOLT DIA TYP BASE PLATE ELEVATION F1554 ALL THREAD RODS GRADE PER SCHEDULE EMBED EMBED
