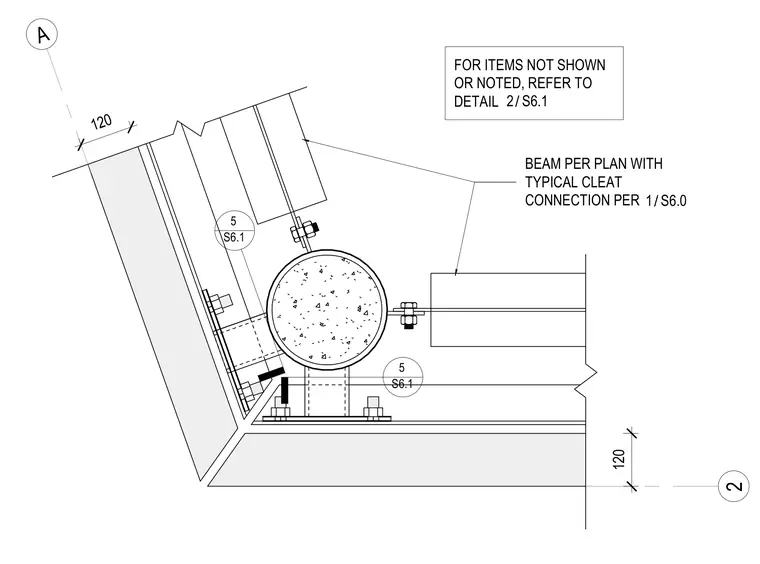

A circular hollow section steel column supports precast concrete panels and structural steel beams arranged in a corner configuration. The precast panels attach to the column via welded plate assemblies and bolted connections. Steel beams connect to the column profile using typical cleat connections with bolts. Additional steel framing elements and concrete infill complete the structural junction.
BEAM PER PLAN WITH TYPICAL CLEAT CONNECTION PER FOR ITEMS NOT SHOWN OR NOTED, REFER TO DETAIL A 2 5 S6.1 5 S6.1 / 2 S6.1 / 1 S6.0 120 120
