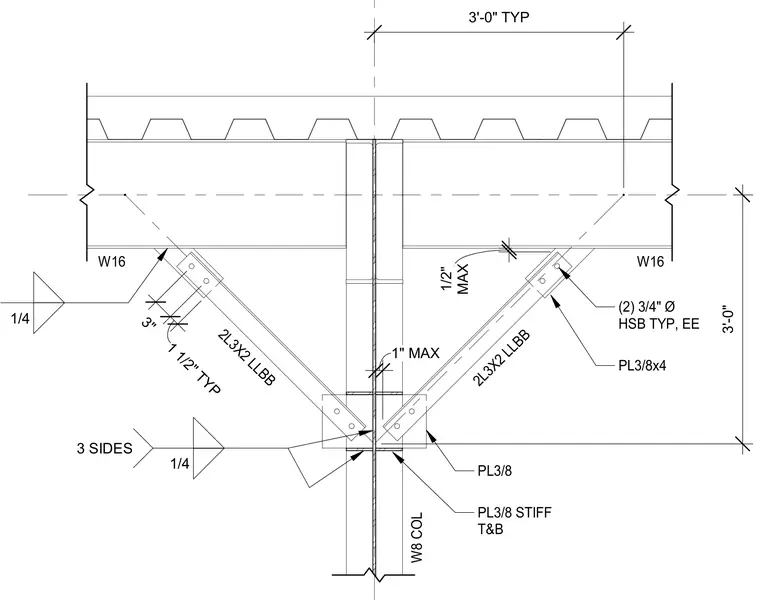

A W16 structural steel beam frames into a W8 column with moment bracing provided by double angles. Two 3x2 angles connect back-to-back as kickers to a 3/8-inch gusset plate welded to the column and beam flange. A 3/8-inch top and bottom stiffener plate is welded to the column web and flanges. Connections utilize two 3/4-inch diameter high-strength bolts typically at each end of the angles, secured with quarter-inch fillet welds on three sides.
W8 COL W16 W16 (2) 3/4" Ø HSB TYP, EE PL3/8x4 2L3X2 LLBB 1/4 1/4 3 SIDES 3'-0" TYP 3'-0" MAX 1/2" 1" MAX PL3/8 STIFF T&B 2L3X2 LLBB PL3/8 3" 1 1/2" TYP
