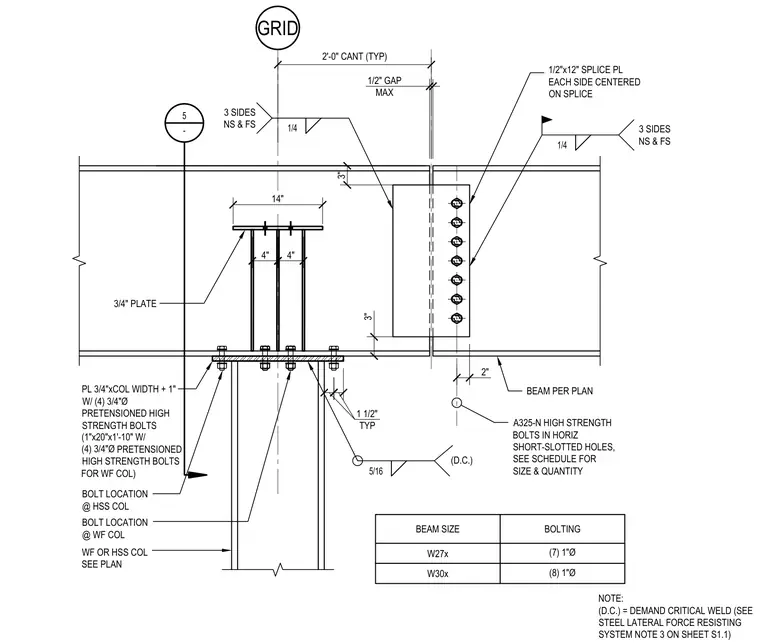

The supported steel beam connects to a wide-flange or hollow structural section column per plan with a maximum half-inch gap. A three-quarter-inch plate welded with a five-sixteenth-inch fillet weld sits atop the column, reinforced by stiffener plates and four three-quarter-inch diameter pretensioned high-strength bolts for wide-flange columns. A half-inch by twelve-inch splice plate is centered on the beam splice on each side, fastened with ASTM A325-N high-strength bolts in horizontal short-slotted holes sized according to the schedule. Additional quarter-inch fillet welds extend to three sides on near and far sides, including demand critical welds noted on structural drawings.
4" 4" 2" WF OR HSS COL SEE PLAN 2'-0" CANT (TYP) 3" 5/16 GRID 14" 3/4" PLATE 1/4 1/2" GAP MAX 3 SIDES NS & FS 1/2"x12" SPLICE PL EACH SIDE CENTERED ON SPLICE BEAM PER PLAN A325-N HIGH STRENGTH BOLTS IN HORIZ SHORT-SLOTTED HOLES, SEE SCHEDULE FOR SIZE & QUANTITY 5 - (1"x20"x1'-10" W/ (4) 3/4"Ø PRETENSIONED HIGH STRENGTH BOLTS FOR WF COL) 1/4 3" PL 3/4"xCOL WIDTH + 1" W/ (4) 3/4"Ø PRETENSIONED HIGH STRENGTH BOLTS 1 1/2" TYP BOLT LOCATION @ HSS COL BOLT LOCATION @ WF COL BEAM SIZE BOLTING W27x (8) 1"Ø W30x (7) 1"Ø (D.C.) NOTE: (D.C.) = DEMAND CRITICAL WELD (SEE STEEL LATERAL FORCE RESISTING SYSTEM NOTE 3 ON SHEET S1.1) 3 SIDES NS & FS
