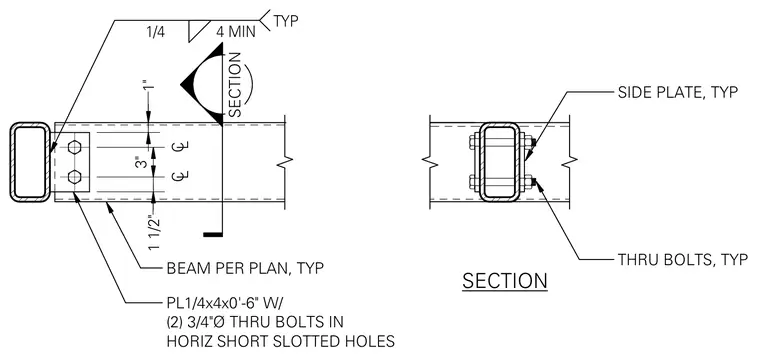

A hollow structural section beam connects to a side plate using two three-quarter-inch diameter through bolts installed in horizontal short slotted holes. The side plate measures one-quarter by four inches by six inches long. A one-quarter-inch fillet weld secures the assembly with a four-inch minimum length.
SIDE PLATE, TYP THRU BOLTS, TYP SECTION SECTION 1/4 4 MIN TYP BEAM PER PLAN, TYP PL1/4x4x0'-6" W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES 1" C L C L 1 1/2" 3"
