Structural · S-7EVCG

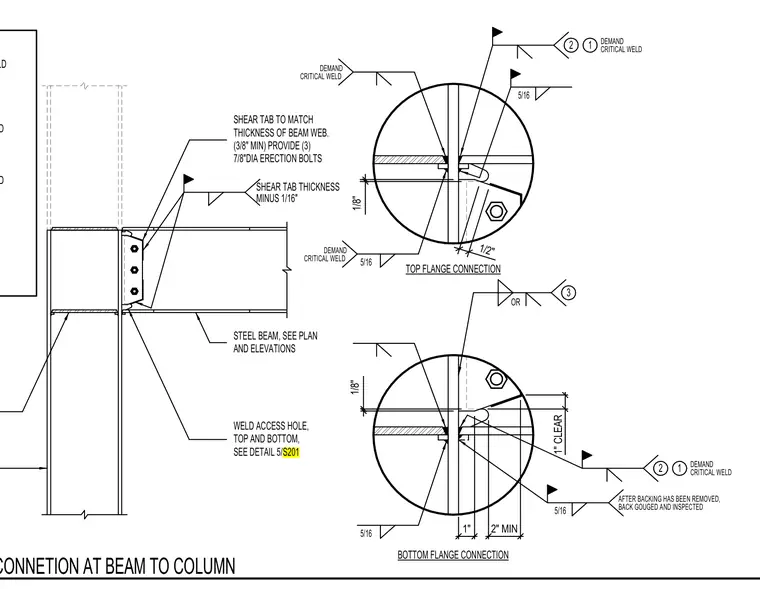

Typical Moment Connection at Beam to Column

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Column Welded Connection Bolted Connection

About this detail

Welded and bolted moment connection between a steel beam and a column. The top and bottom flange connections feature complete joint penetration welds with demand critical requirements, including weld access holes detailed per structural drawings. After welding, the weld backing is removed and back-gouged prior to inspection. A shear tab matches the thickness of the beam web, set one-sixteenth inch thinner, and is fastened with three seven-eighths inch diameter erection bolts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
