Shear Transfer at Interior Floor Trusses and Shearwall

Materials

Elements

Beams Walls Floors / Slabs Arches Trusses

About this detail

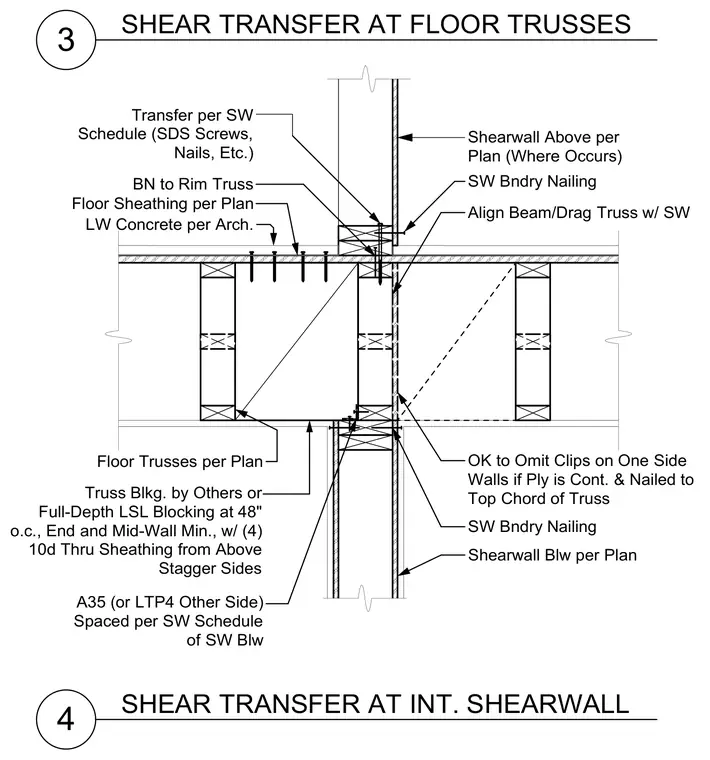

Floor trusses align with an interior shearwall below, carrying lightweight concrete floor topping over floor sheathing. Full-depth LSL blocking or truss blocking at forty-eight inches on center is secured with four ten-penny nails through sheathing from above, staggered on each side. Shearwall boundary nailing fastens the wall sheathing directly to the framing members. An A35 or LTP4 connector is spaced per the shearwall schedule to tie the wall below to the floor assembly. Shear transfer connectors and structural wood screws anchor the upper shearwall to the rim truss and blocking.
