Structural · S-7EJEY

Pile Load Distribution and Foundation Diagram

Elements

Columns Floors / Slabs Foundations / Footings

Connections

About this detail

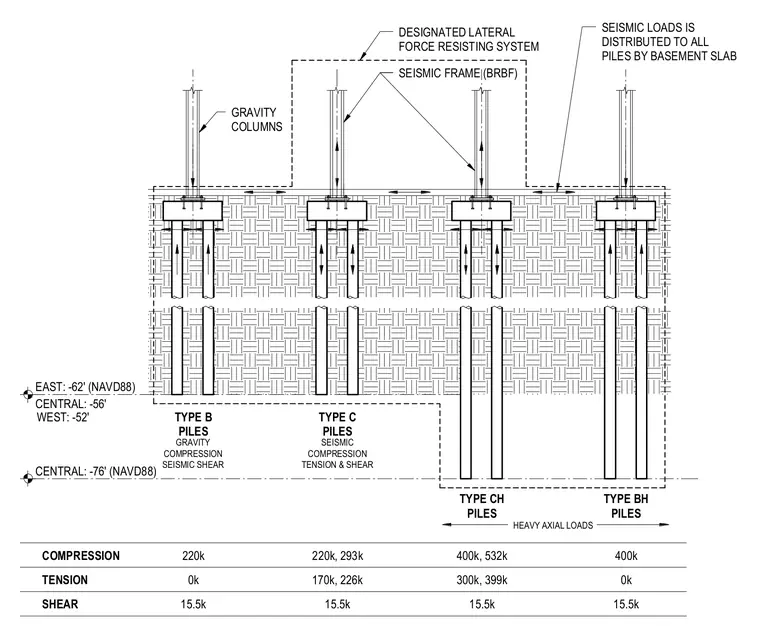

Foundation pile configurations and load distributions for gravity columns and buckling-restrained braced frame seismic systems. Type B piles handle gravity compression and seismic shear, while Type C piles support seismic compression, tension, and shear. Type CH and Type BH piles accommodate heavy axial loads beneath the structure. Seismic loads are distributed to all piles through the basement slab, with elevations and load capacities detailed for east, central, and west locations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
