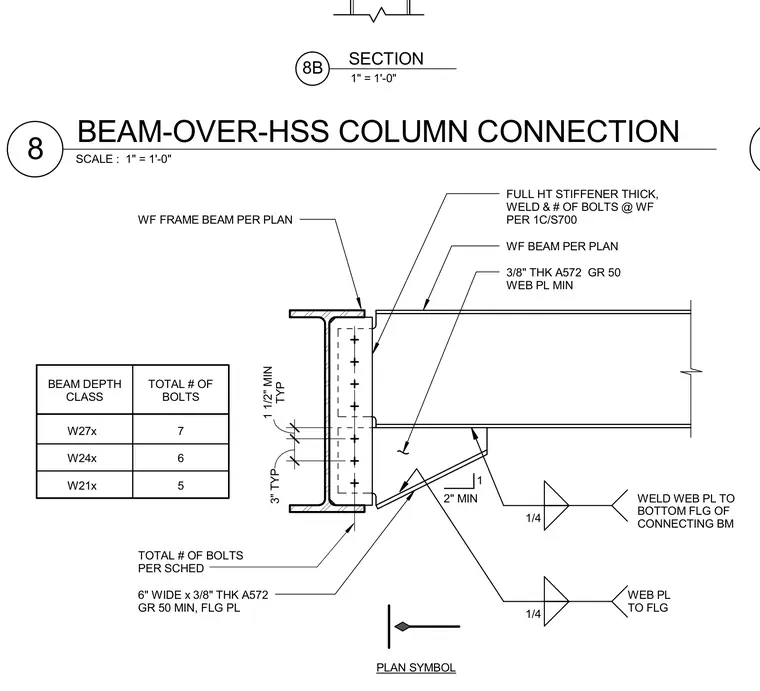

A beam-over-HSS column connection utilizes a wide flange frame beam sized per plan and a connecting wide flange beam. The assembly incorporates a three-eighths-inch thick ASTM A572 Grade 50 web plate welded to the bottom flange of the connecting beam with a one-quarter-inch fillet weld. A six-inch wide by three-eighths-inch thick ASTM A572 Grade 50 flange plate connects at the bottom with a one-quarter-inch fillet weld to the web plate. A full height stiffener plate is provided with a weld and number of bolts at the wide flange per schedule, maintaining a one-and-a-half-inch minimum typical spacing and three-inch typical bolt spacing. The total number of bolts varies by beam depth class, ranging from five to seven bolts.
FULL HT STIFFENER THICK, WELD & # OF BOLTS @ WF PER 1C/S700 WF BEAM PER PLAN 3" TYP TYP 1 1/2" MIN 1/4 WEB PL TO FLG WF FRAME BEAM PER PLAN WELD WEB PL TO BOTTOM FLG OF CONNECTING BM 3/8" THK A572 GR 50 WEB PL MIN 1/4 PLAN SYMBOL 6" WIDE x 3/8" THK A572 GR 50 MIN, FLG PL 1 2" MIN TOTAL # OF BOLTS PER SCHED BEAM DEPTH CLASS W24x W21x W27x 7 6 5 TOTAL # OF BOLTS SCALE : 1" = 1'-0" 8 BEAM-OVER-HSS COLUMN CONNECTION 1" = 1'-0" 8B SECTION
