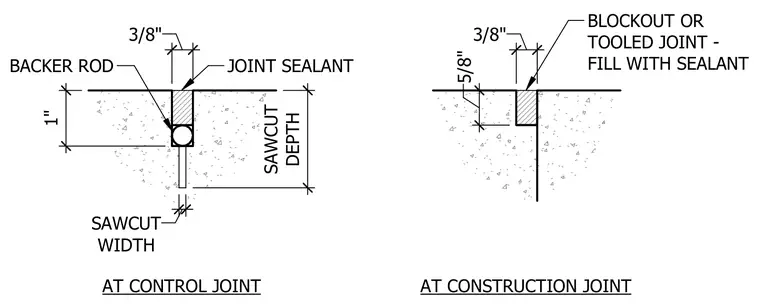

The control joint detail features a one-inch deep sawcut with a three-eighths inch width, containing a backer rod and joint sealant at the top. The construction joint detail incorporates a three-eighths inch blockout or tooled joint filled with sealant over a five-eighths inch depth.
1" SAWCUT DEPTH 3/8" BACKER ROD JOINT SEALANT WIDTH SAWCUT AT CONTROL JOINT 3/8" BLOCKOUT OR TOOLED JOINT - FILL WITH SEALANT AT CONSTRUCTION JOINT 5/8"
