Structural · S-7DV39

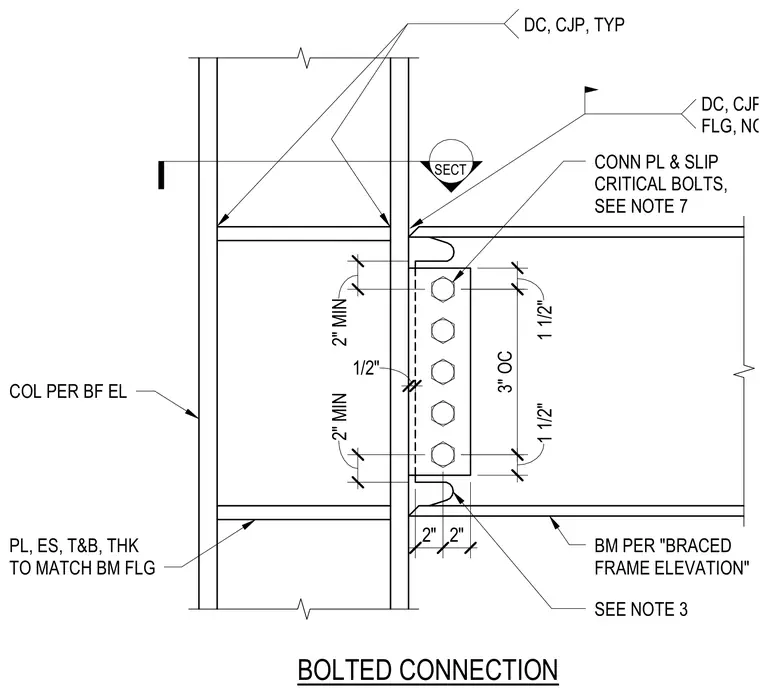

Bolted Frame Connection at Column and Beam

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

The steel beam connects to the column per braced frame elevation requirements utilizing a connection plate and slip-critical bolts spaced at three inches on center. The top and bottom flanges of the beam feature complete joint penetration welds with specific edge distances and clearances. Plates are provided at each side, top, and bottom, with thicknesses matching the beam flange. Columns and beams are sized per the structural braced frame elevation.
