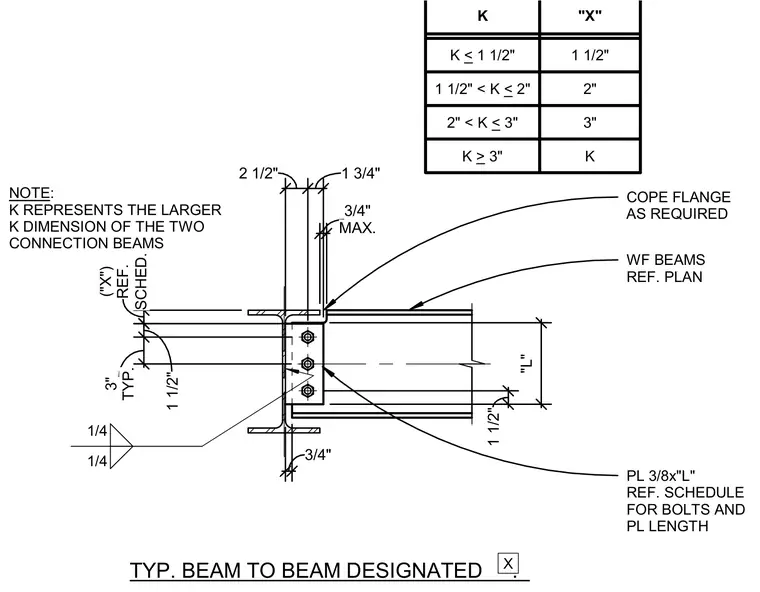

A structural connection between wide-flange beams sized per plan integrates a supported beam with a cope flange as required. The supported member ties into the supporting member using a 3/8-inch plate, with dimensions and bolt sizes referenced in the schedule. A 1/4-inch fillet weld secures the connection plate. Dimension X is determined by the larger K dimension of the two connected beams, following the provided sizing table.
TYP. BEAM TO BEAM DESIGNATED . NOTE: K REPRESENTS THE LARGER K DIMENSION OF THE TWO CONNECTION BEAMS COPE FLANGE AS REQUIRED WF BEAMS REF. PLAN PL 3/8x"L" REF. SCHEDULE FOR BOLTS AND PL LENGTH X SCHED. ("X") REF. MAX. 3/4" 1/4 1/4 "L" 2 1/2" 1 3/4" 1 1/2" 1 1/2" TYP. 3" 3/4" K < 1 1/2" 1 1/2" K "X" 1 1/2" < K < 2" 2" 2" < K < 3" 3" K > 3" K
