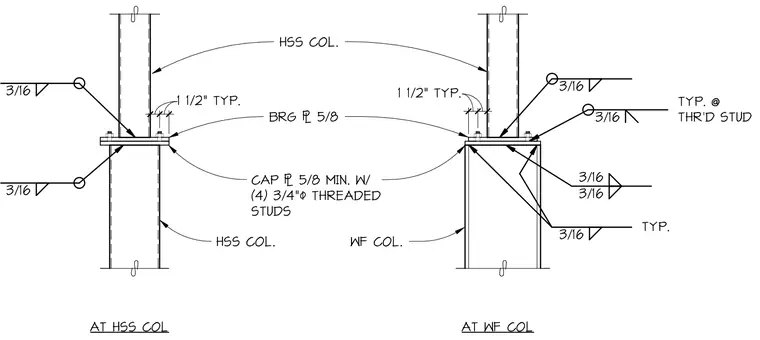

Hollow structural section column connections are supported by a hollow structural section column on the left and a wide flange column on the right. A five-eighths inch bearing plate sits atop the support column, secured with four three-quarter inch diameter threaded studs. Three-sixteenths inch fillet welds connect the base and cap assemblies with typical one-and-a-half-inch dimensions specified at the column base.
1 1/2" 1 1/2" TYP. AT HSS COL AT WF COL CAP # 5/8 MIN. W/ (4) 3/4"2 THREADED STUDS BRG # 5/8 3/16 3/16 3/16 HSS COL. HSS COL. WF COL. 1 1/2" TYP. 1 1/2" 3/16 TYP. @ THR'D STUD 3/16 3/16 3/16 TYP.
