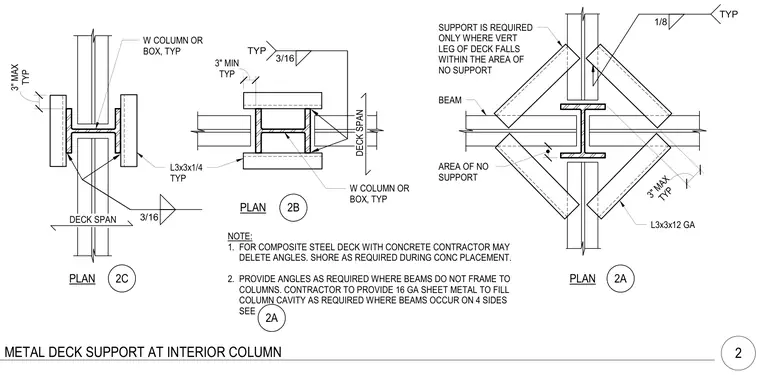

Three structural plans detail metal deck supports at interior wide-flange or box columns using L3x3x1/4 or L3x3x12 gauge angles welded with typical three-sixteenth-inch or one-eighth-inch fillet welds. Composite steel decks with concrete allow contractors to delete the angles if properly shored during concrete placement. Additional angles are provided where beams do not frame directly to columns, alongside sixteen-gauge sheet metal closures to fill column cavities where beams occur on four sides.
2C 2A L3x3x12 GA NOTE: 1. FOR COMPOSITE STEEL DECK WITH CONCRETE CONTRACTOR MAY DELETE ANGLES. SHORE AS REQUIRED DURING CONC PLACEMENT. 2. PROVIDE ANGLES AS REQUIRED WHERE BEAMS DO NOT FRAME TO COLUMNS. CONTRACTOR TO PROVIDE 16 GA SHEET METAL TO FILL COLUMN CAVITY AS REQUIRED WHERE BEAMS OCCUR ON 4 SIDES SEE AREA OF NO SUPPORT SUPPORT IS REQUIRED ONLY WHERE VERT LEG OF DECK FALLS WITHIN THE AREA OF NO SUPPORT BEAM W COLUMN OR BOX, TYP L3x3x1/4 TYP W COLUMN OR BOX, TYP 1/8 TYP 3/16 TYP 3/16 DECK SPAN DECK SPAN TYP 3" MAX TYP 3" MAX TYP 3" MIN PLAN PLAN PLAN 2B 2A METAL DECK SUPPORT AT INTERIOR COLUMN 2
