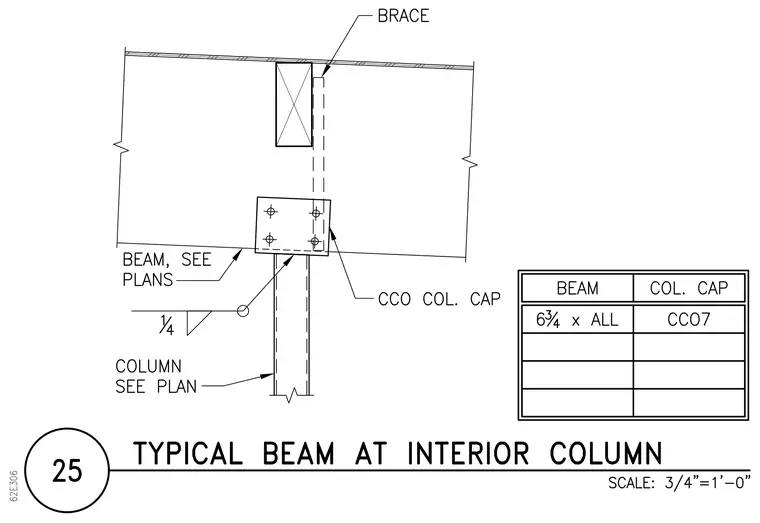

A beam is supported by an interior column with a CC07 column cap plate welded to the column top using a quarter-inch fillet weld. A brace is positioned adjacent to the column cap. The beam size is specified per plans and connects through the column cap assembly.
