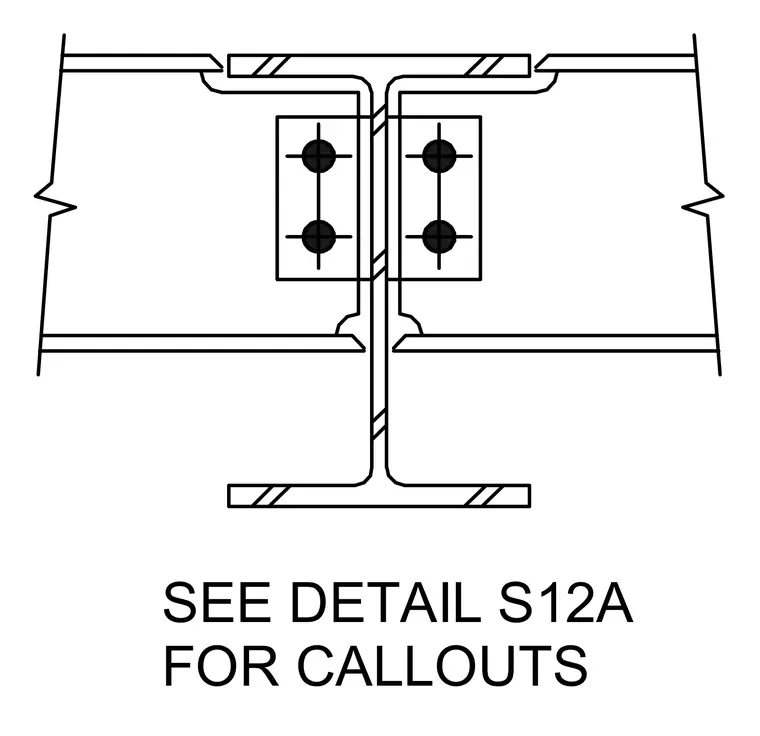

Two steel beams frame into opposite sides of a structural steel column web using bolted shear tabs. Four bolts secure each beam web to the vertical plate welded to the column. The flanges of the supported beams terminate with cope cuts to clear the column flanges.
