An angle brace connects to a structural end beam using a half-inch gusset plate welded with quarter-inch fillet welds. The gusset plate attaches to the beam flange via six seven-eighths-inch diameter bolts on each leg. The angle bracing is tied back to the beam web with a bolted connection featuring a minimum three-inch spacing and one-inch typical edge distances. A work point is established at the center line of the angle intersecting the support framing.

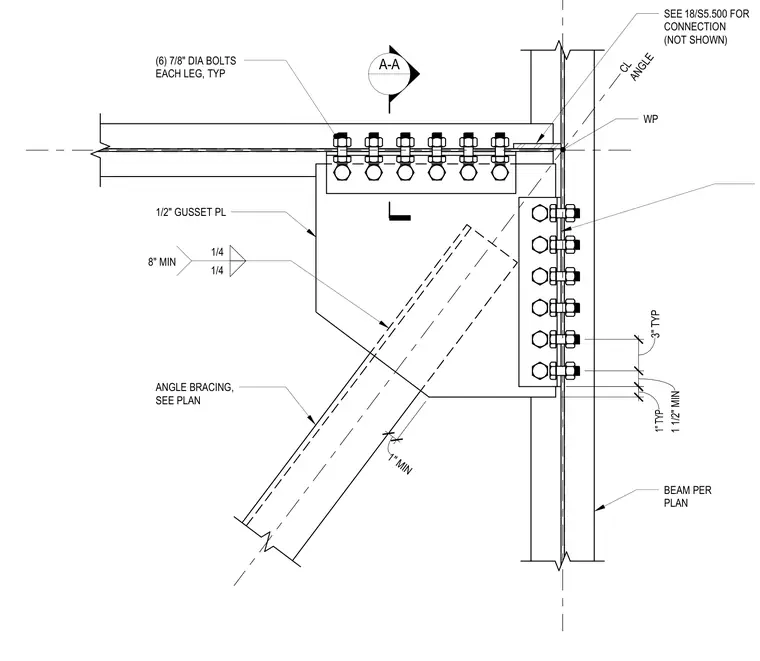

A-A BEAM PER PLAN 3" TYP 1 1/2" MIN WP SEE FOR CONNECTION (NOT SHOWN) (6) 7/8" DIA BOLTS EACH LEG, TYP 1/2" GUSSET PL ANGLE BRACING, SEE PLAN 1/4 1/4 8" MIN 18/S5.500 CL ANGLE 1" TYP 1" MIN
